Define GS1-128 Bar Codes
If your vendors use GS1-128 bar codes, you will need to set up a GS1-128 bar code type, which will allow you to scan their bar codes during warehouse processes.
GS1-128 bar codes are also used on the Inventory Label report. For a bar code to be used on the Inventory label, it needs to have the Default check box selected. Note: A default GS1-128 bar code is delivered.
IMPORTANT
You need to set up your hand-help scanner so that it inserts a separator when scanning. And the separator that was set on the scanner needs to be entered in the GS1 Separator Character (Unicode) field on the Bar Code Setup page.
You need to find out the following from your vendors:
- Global Trade Item Number (GTIN) for the items they sell.
- Data fields that they use in their bar codes.
The Create Default Bar Code Types action creates a default GS1-128 bar code. The Default check box will automatically be selected. If a bar code is already marked as default then Default will not be selected when the bar code is created. The following bar code is created when this action is run:
| Code | Description | Type | Default |
|---|---|---|---|
| GS1-JF | Standard GS1 for JustFood | GS1-128 | Yes (The check box is only selected if the Default check box was not selected for another code) |
Prerequisites
Example
Your vendors create GS1-128 bar codes that resemble the following:
| Bar Code Label | Description |
|---|---|
 |
The following information is included in the bar code:
|
 |
The following information is included in the bar code:
|

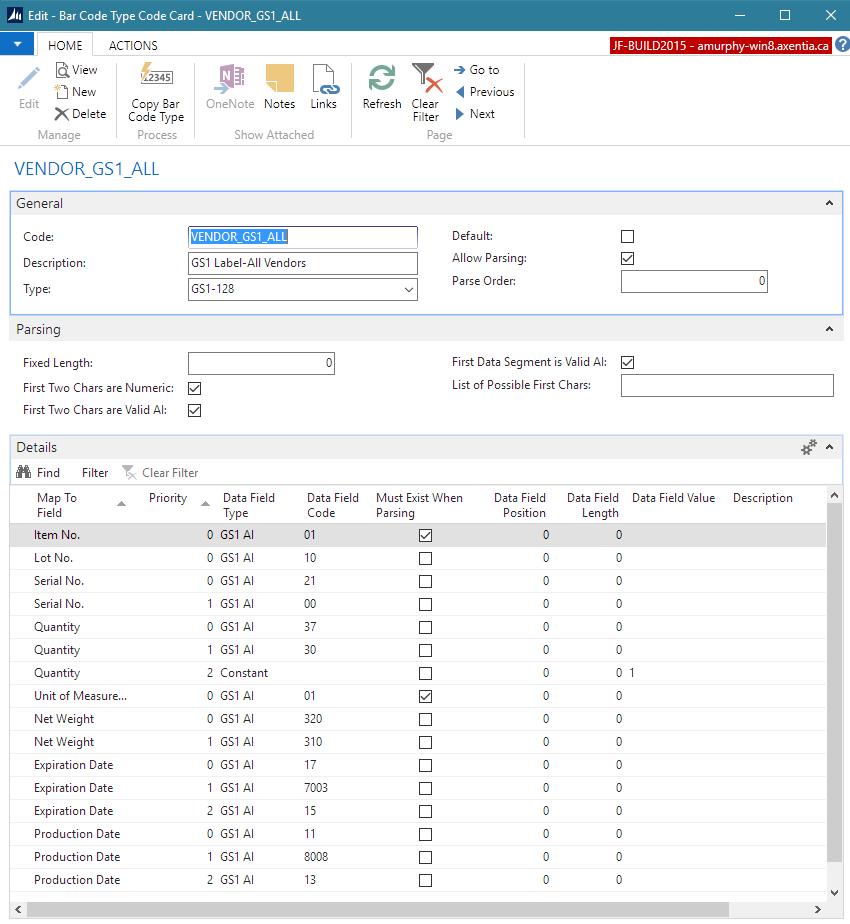

To be able to scan these labels, the bar code type is set up as follows:
To define GS1-128 bar codes
Choose the Search icon, enter Bar Code Types, and then choose the related link.
Click New. The Bar Code Type Code Card page opens.
Enter the following information in the General FastTab:
Code: Code that represents the bar code.
Description: Enter a description of the bar code.
Type: Select GS1-128.
Default: Select this check box if you want the GS1 bar code to be used on the Inventory Label report.
Allow Parsing: Select this check box, which allows this bar code type to be considered when trying to match a scanned bar code with a bar code type code.
Parse Order: Enter the order in which a bar code is considered when trying to match a scanned bar code with a bar code type code. The lower the number, the higher the priority.
Enter the following information in the Parsing FastTab. The Parsing FastTab contains the information that allows JustFood to determine whether an incoming scanned bar code matches a bar code type.
Fixed Length: Leave blank.
First Two Chars are Numeric: Select this check box.
First Two Chars are Valid AI: Select this check box.
First Data Segment is Valid AI: Select this check box.
List of Possible First Chars: Leave blank.
Enter the following information in the Details FastTab. The Details FastTab allows you to indicate what the data in the bar code represents.
Map To Field: Select the field that the scanned data will be mapped to.
Priority: If you enter the same Map to Field values, enter a number to indicate which data field is given priority. The lower the number, the higher the priority..
Data Field Type: Select the data field type.
GS1 AI: GS1 application identifier. The data field indicates the type of data that follows identifier. When this value is selected, a value must be entered in the Data Field Code field. This value only applies when the type is GS1-128. When using GS1 AI, the data in the bar code must follow the standards as defined in the GS1 identification guidelines.
Constant: Indicates that a defined value should be used. The Constant value is used when matching data cannot be found. When this value is selected, you need to enter a value in the Data Field Value field.
Data Field Code: If you selected GS1 AI for the Data Field Type field, then select the application identifier that corresponds to the data that you're mapping to.
Must Existing when Parsing: When this check box is selected, the data field must exist when the bar code is scanned.
Data Field Position: Leave blank.
Data Field Length: Leave blank.
Data Field Value: Indicates the value that should be automatically assigned to the data. This field is used when Constant is selected for the Data Field Type field.
Description: Enter a description of the line.
Close the page.
To cross reference the GTINs to an item
This allows you to associate a global trade item number (GTIN) to your item.
Open the item card for an item that you purchase from a vendor.
On the Navigate tab, in the Master Data group, choose Cross References.
Select Bar Code for the Cross-Reference Type No. field.
In the Cross-Reference No. field, enter a valid global trade item number (GTIN). For GS1 bar codes, the GTIN needs to be 14 numbers.
NOTE
You must enter a valid GTIN otherwise the bar code cannot be scanned correctly.
To generate a valid GTIN-14 for test data, go to https://www.gs1us.org/resources/tools/check-digit-calculator.
Select the unit of measure that applies to the entered GTIN in the Unit of Measure field. All GTINs have their own specific UOM.
Select a GS1 bar code type in the Bar Code Type Code field.
Close the page.
